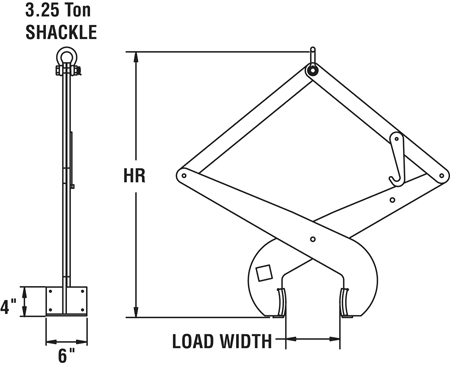

Designed for lifting dry slabs of concrete, stone, or metal that must be protected from scratching or marring.
-
Use in construction work to position slabs.
-
The curved pads give proper contact for gripping smooth surfaces and handling a large range of sizes.
-
Polyurethane gripping surfaces are standard.
-
A manual latch is standard and locks the tong arms for easy placement on the load.
-
Complies with ASME standards.
| Model Number |
Rated Capacity (lbs.) |
Load Width Min. - Max. (in.) |
HR Min. - Max. (in.) |
Weight (lbs.) |
| 71-0 |
1000 |
1 - 6" |
31.30 - 39.58" |
65 |
| 71-1 |
1000 |
6 - 10" |
35.06 - 43.00" |
75 |
| 71-2 |
1500 |
8 - 12" |
29.18 - 38.06" |
85 |
| 71-3 |
1500 |
10 -14" |
31.43 - 42.00" |
145 |
| 71-4 |
1500 |
14 - 18" |
41.38 - 51.25" |
145 |
| 71-5 |
1500 |
18 - 22" |
48.90 - 60.00" |
150 |
This item has a fabrication period of 2 weeks.
This item ships LTL on pallet. Please select trucking at checkout. You will be contacted by an associate with a ship quote, next business day.
|
|
|
 |
|
 |
|
